ID # 23550332 2023 Yamaha RAPTOR 90 Team Yamaha Blue
The Raptor 90's sporty styling and ease-of-use is the best way to nurture the passion that drives your young rider. Featuring reverse, adjustable speed limiters, electric start, and fully automatic CVT and legendary Raptor styling, this youth ATV is pure fun for riders age 10 and up.
Dual drum front and rear drum brakes provide consistent stopping power.
Large, deep floorboards provide secure and safe support for a young rider's feet.
90 cc makes smooth, predictable 4-stroke power.
Electric start will get the novice rider up and running at the push of a button.
Easy access air filter makes maintenance quick and easy.
features and benefits
Features & Benefits
Air-cooled, 89.5 cc, SOHC, 2-valve, 4-stroke powerplant produces smooth, reliable, novice friendly power. Proven, reliable design Easy to use, linear power delivery Solid low-to-mid-range performance Air cooling for simplicity & reduced maintenance
Push-button electric starting backed up by an auxiliary kick starter. Electric starting makes learning to ride more fun
Single overhead camshaft (SOHC), 2-valve design. Simple 1- intake valve & 1- exhaust valve cylinder head design Utilizes conventional rocker arms & screw type tappet adjusters for easier maintenance
Flat top piston & lightweight ball bearing style crankshaft. 2:1 compression ratio, uses regular gas Lightweight components means faster engine response
Automatic cam chain adjuster. Reduces maintenance & mechanical engine noise
TK 13mm carburetor. Crisp throttle response with good fuel economy Easy access handlebar mounted choke lever

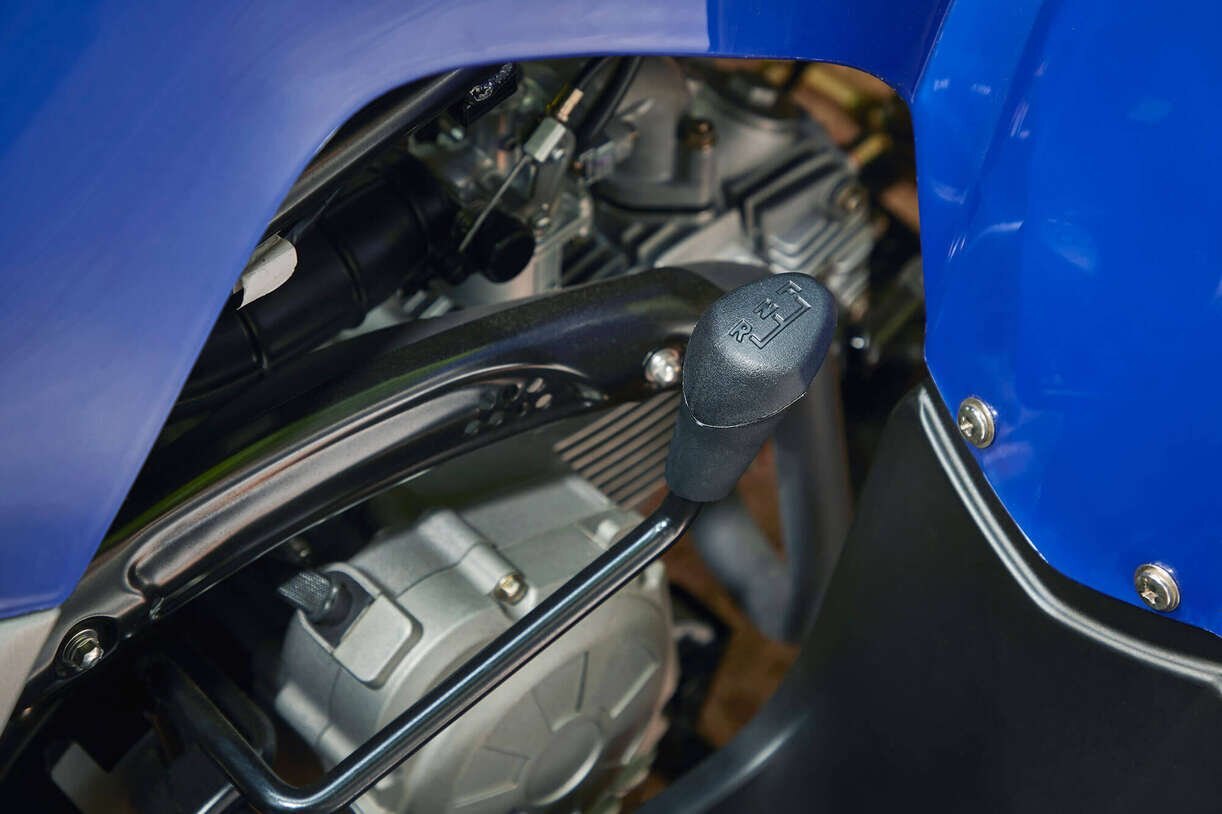

Fully automatic CVT transmission with reverse. Automatic clutch and no gears allows young riders to concentrate on the basics of riding & developing riding skills Automotive style gated shifter: forward, neutral & reverse Handlebar mounted indicator lights provide indication of drive selection (Neutral or reverse)
Maintenance-free capacitor discharge ignition (CDI). Produces a strong spark for fast starts Provides precise ignition timing / mapping for optimum engine performance at all rpms
Easy access, no tools required washable foam air filter. Reduces maintenance costs Re-usable design
Spark arrestor equipped exhaust system. Quiet design "Cleanable" spark arrestor prevents stray sparks from exiting the exhaust Heat shield protects young riders from hot components
Rugged round tube steel frame. Compact design provides nimble, responsive handling Low seat height (750 mm / 29.5") makes getting on & off easy
Adjustable independent, single A-arm front suspension. 5-position spring preload adjustability to match rider weight and / or trail conditions 126 mm (5") front wheel travel Grease fitting on selected components
Adjustable single shock rear suspension. 5-position spring preload adjustability 145 mm (5.7") front wheel travel
Dual front drum brakes. Independent (separate) front & rear braking for enhanced control & terrain-ability Hand-operated brake levers are similar to those used on a bicycle for easy familiarity
Single drum rear brake with handlebar mounted lever style parking brake. Consistent braking performance
Rugged steel rims fitted with 18" tires. Steel rims provide excellent durability & traction Tire design enhances steering precision, ride comfort & traction
6 litre fuel tank. On - off - reserve petcock helps to prevent running out of gas Reserve portion of tank is 0.9 litres
Rugged & roomy floorboards. Excellent rider foot protection Helps reduce mud & water splash
Sporty styling & rugged body work. Sporty styling & high fenders are inspired by the mighty Raptor 700R.
Durable O-ring drive chain. Single adjusting bolt makes chain adjusting easy
Low maintenance, sealed battery (battery should be charged during extended storage). Battery is sealed... no need to check electrolyte levels or add distilled water
Keyed ignition lets parents control use
Heat shields on exhaust protect young riders from hot components
Adjustable speed limiter screw on throttle housing restricts throttle lever movement to reduce acceleration & top speed.
2-stage rpm limiter device limits engine rpm. As skills improve, the limiter can be removed & maximum engine rpm will increase from 4,900 rpm to 8,500 rpm making a significant difference in power & performance features & specs
FEATURES & SPECS
KEY FEATURE Air-cooled, 89.9 cc, SOHC, 2-valve, 4-stroke powerplant produces smooth, reliable, novice friendly power. Push-button electric starting backed up by an auxillary kick starter. Single overhead camshaft (SOHC), 2-valve design. Flat top piston & lightweight ball bearing style crankshaft. Automatic cam chain adjuster. TK 13mm carburetor. engine
Air-cooled, SOHC, 2-valve, single
Electric with auxillary kick
O-ring Chain Drive
Fully automatic CVT with reverse
TK13 mm carburetor
BORE AND STROKE
47 mm x 51.8 mm
Single Drum / Lockable hand lever parking brake
AT 18 x 7-8
Adjustable, single shock swing arm / 145 mm (5.7") of wheel travel
Adjustable, single A-arm / 126 mm (5") of wheel travel
One year (unlimited mileage)
Team Yamaha Blue White
1030 mm (40.6")
126.5 kg (279 lb)
750 mm (29.5").
MAXIMUM GROUND CLEARANCE
100 mm (3.9")
Call for Price Pricing excludes licensing and tax
